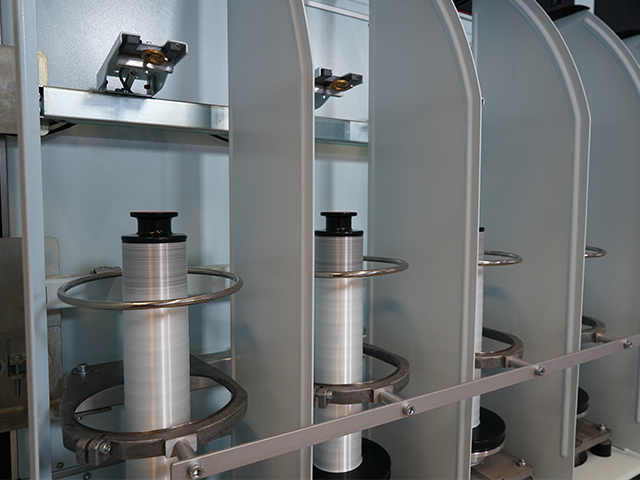

The fiberglass twisting machine adopts a single control servo motor, pneumatic tension device, and is equipped with an intelligent PLC to drive the single board, resulting in higher integration; The unwinding bracket is made of lightweight engineering plastic material, which is lightweight for unwinding; Direct drive control module, with lower vibration and noise, and motor equipped with overheating and overload protection.

In terms of yarn guide control, the machine is equipped with dual air ring and yarn guide hook, with optimized air ring; New type of yarn guide detection system, more sensitive for yarn breakage detection; High precision positioning control technology, with a steel ring position accuracy of 0.01mm, better unwinding characteristics of finished yarn in coil packaging, and better process adaptability.

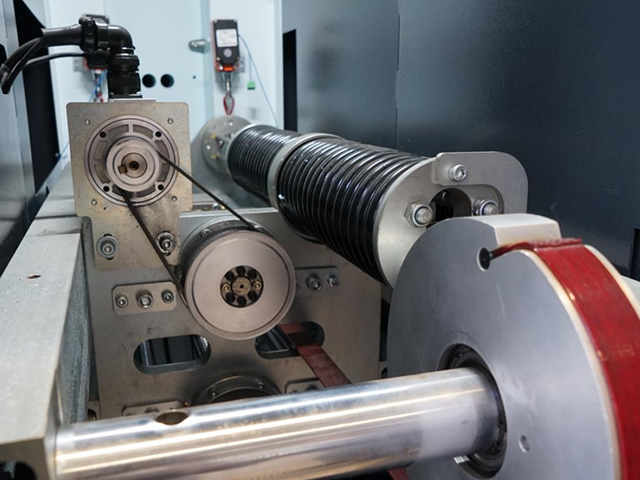

The spindle of the fiberglass twisting machine adopts energy-saving frequency conversion technology, which has lower energy consumption. The signal communication of the spindle motor is connected by CAN bus, with a spindle speed range of 3000-9000rpm and a spindle speed deviation of less than 3 ‰. The spindle brake adopts pneumatic braking function, making the stop smoother.
