1.Product Introduction

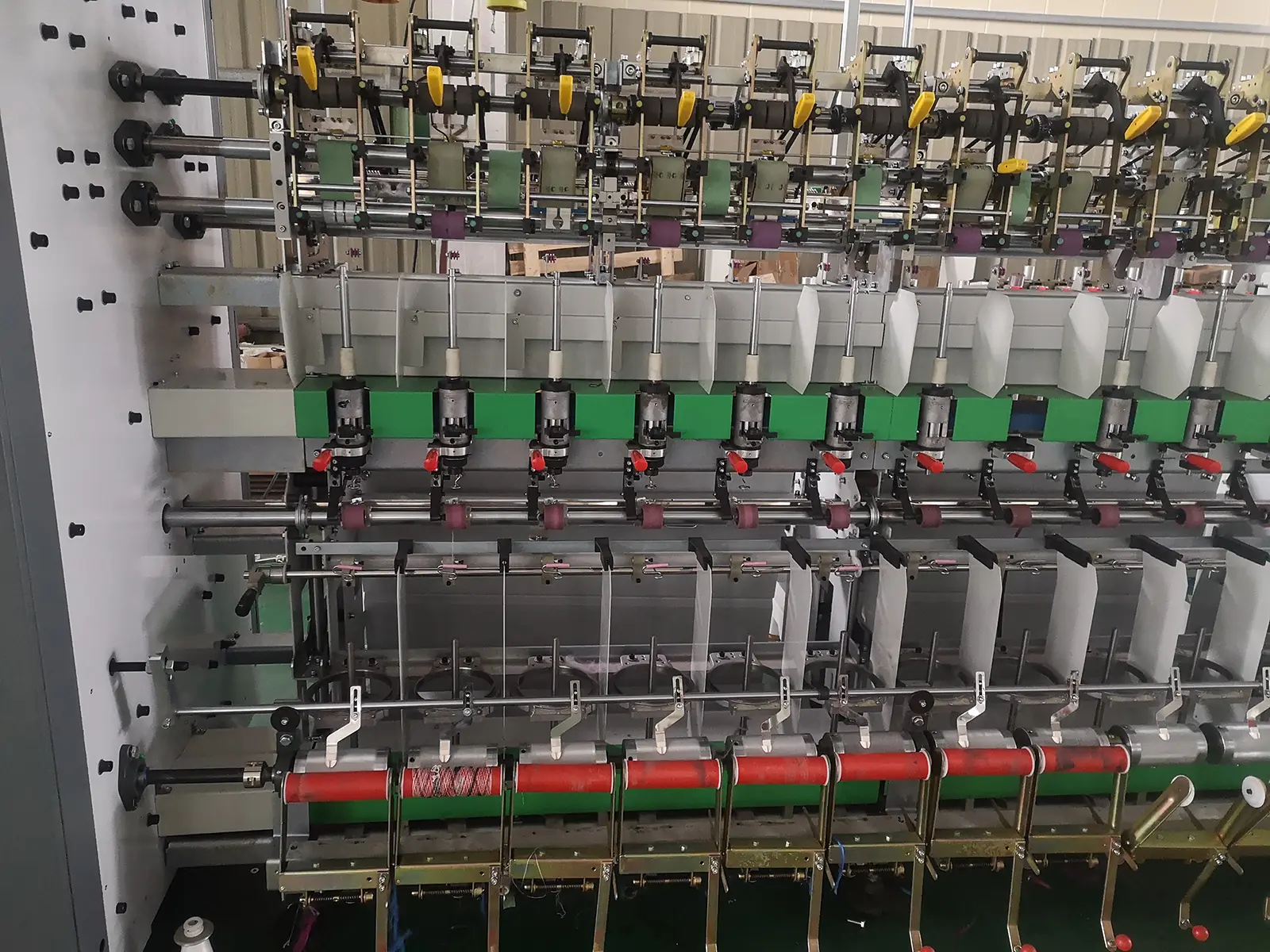

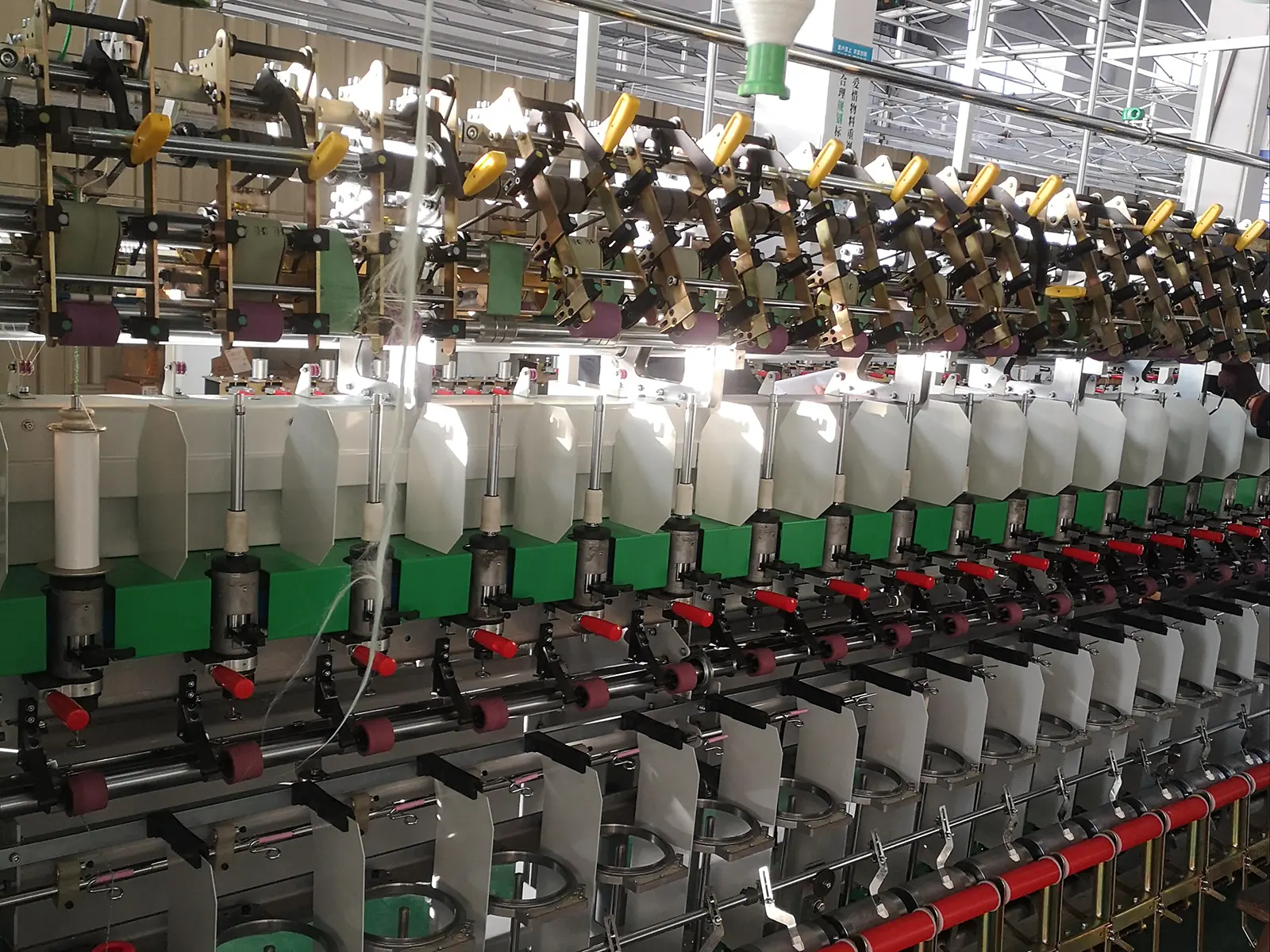

This machine is a single-sided model with a maximum of 90 spindles per unit, featuring both ring spindle and fluted tube winding options. It is suitable for producing three-color fancy yarns, including gradient, abrupt-change, novelty, loop, ripple, slub, knot, and brushed yarns. The yarns produced are stable in quality, delicate in style, lightweight in hand-feel, and rich in texture, widely appreciated by fashion designers of leading global brands.

2.Product Description
The machine adopts a three-color roving feeding system, enabling consistent and efficient production of fancy yarns. Equipped with both ring spindle and fluted tube winding options, it provides flexibility in yarn take-up methods while ensuring smooth yarn formation and high consistency. The drafting system features 5 rollers with a gantry-type frame set at a 90-degree vertical position, stabilizing fiber drafting for uniform yarn thickness. Two core yarn guide slots on the metal front rollers undergo special treatment, offering significant advantages for high-count single-core or dual-core fancy yarns. The PLC-based control system and touchscreen panel allow operators to easily adjust process parameters, store recipes, and switch production quickly.

3.Technical Features
Three-Color Roving Feeding
Stable and consistent fiber feeding ensures uniform yarn structure.

Dual Take-Up Options
Flexible ring spindle or fluted tube take-up to accommodate different yarn types and production requirements.

Precision Drafting System
Five rollers with gantry-type frame ensure uniform drafting and high yarn quality.

Core Yarn Guide
Two specially treated core yarn guide slots improve stability for high-count fancy yarns.

Independent Servo Drive
Each spindle individually controlled for precise speed and tension adjustment.

Advanced PLC Touchscreen Control
Easy operation with recipe storage, quick process switching, and high control accuracy.
